Cincinnati FTV850-3700 Spindle Repair

Cincinnati FTV850-3700 Spindle Repair

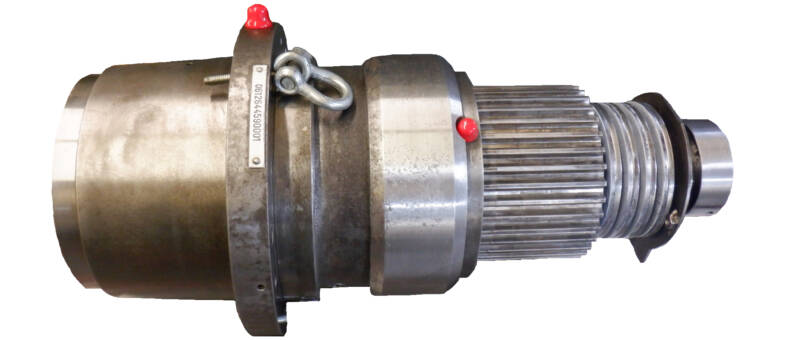

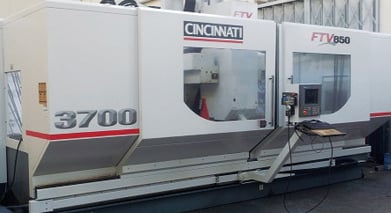

The Cincinnati FTV850-3700 is a large CNC vertical machining center.  It can come fitted with this oil mist lubricated and pulley driven spindle that is capable of running up to 6,000 rpm.

Cincinnati FTV850-3700 Spindle Repair


Our customer sent in this Cincinnati FTV850-3700 spindle stating they were getting low drawbar pullforce.  Once the spindle arrived at Northland Tool we completed a full disassembly and evaluation.

Cincinnati FTV850-3700 Spindle Repair

This is what we found:

  • We were only seeing about 1300Lbs of draw bar force. (Print specs 3300 Lbs.)
  • The inside of the shaft was heavily corroded and rusted, one of the factors in the low force.
  • The draw bar shaft was heavily corroded and we recommended it be replaced. (Pic 3)
  • Ball cage was also heavily worn and needed to be replaced.
  • The ( Shaft ID ) housing for the brass ball cage was corroded (Pic 2)
  • All four bearings were worn and the rear bearing grease was contaminated with a dark brown grease (Pic 1)
  • ID 50 Taper had poor contact and measured “AT wrong” on our air gauge
  • The Bellevilles were worn
  • The OD bearing journals had score marks



The following actions were performed on this Cincinnati FTV850-3700 spindle:

  • Replace Bolts, O-rings, Bearings, Bellevilles, Belt, Brass ball cage, and Draw bar
  • Grind-Plate-Grind (GPG) ID 50 taper due to poor contact, low gap and failing on the air gauge system
  • GPG ball cage housing in rear ID of shaft
  • GPG tail of shaft where Belleville’s pilot due to heavy corrosion
  • Polish OD bearing journals in assmembly



After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.

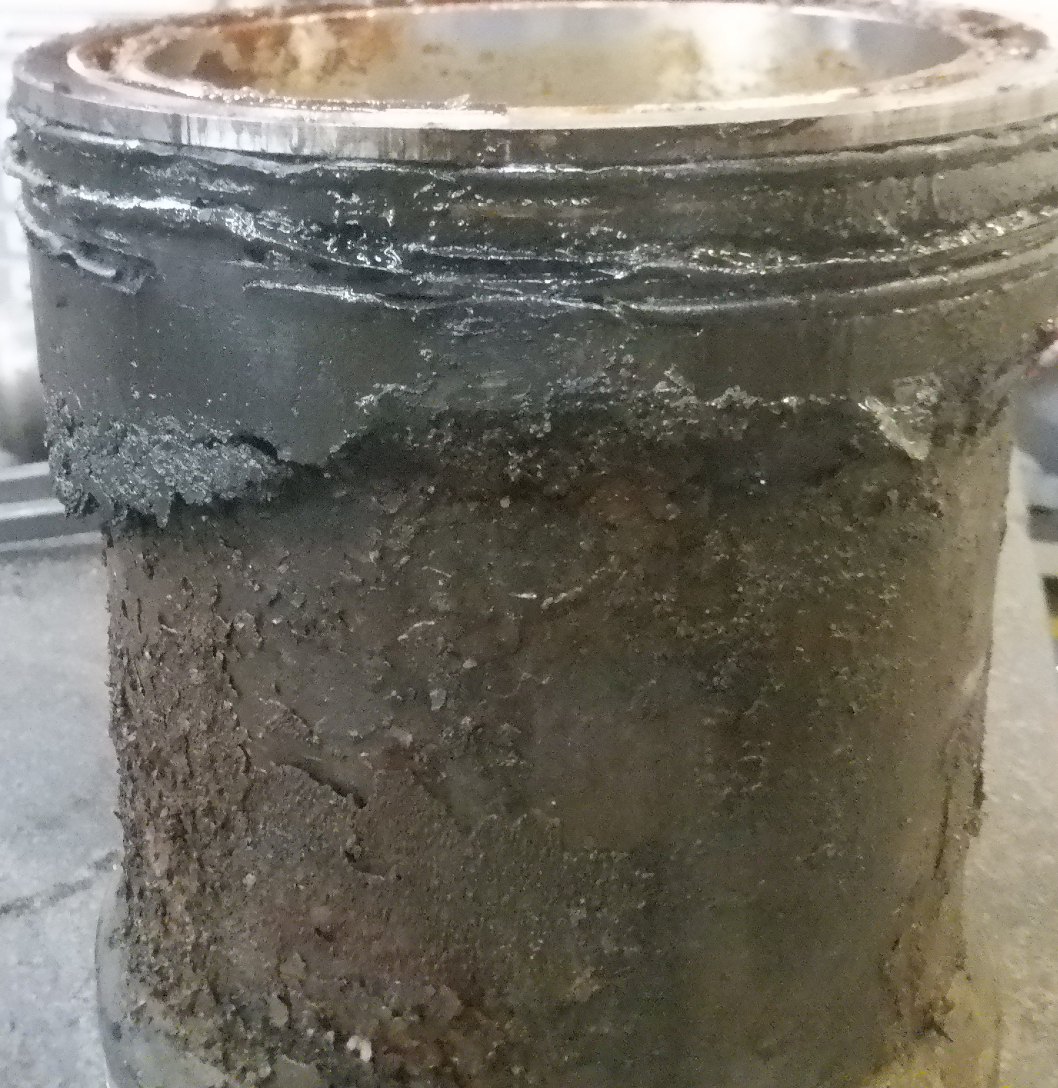

  • Brown grease in bearings (Pic 1)

  • Corrosion inside the shaft (Pic 2)

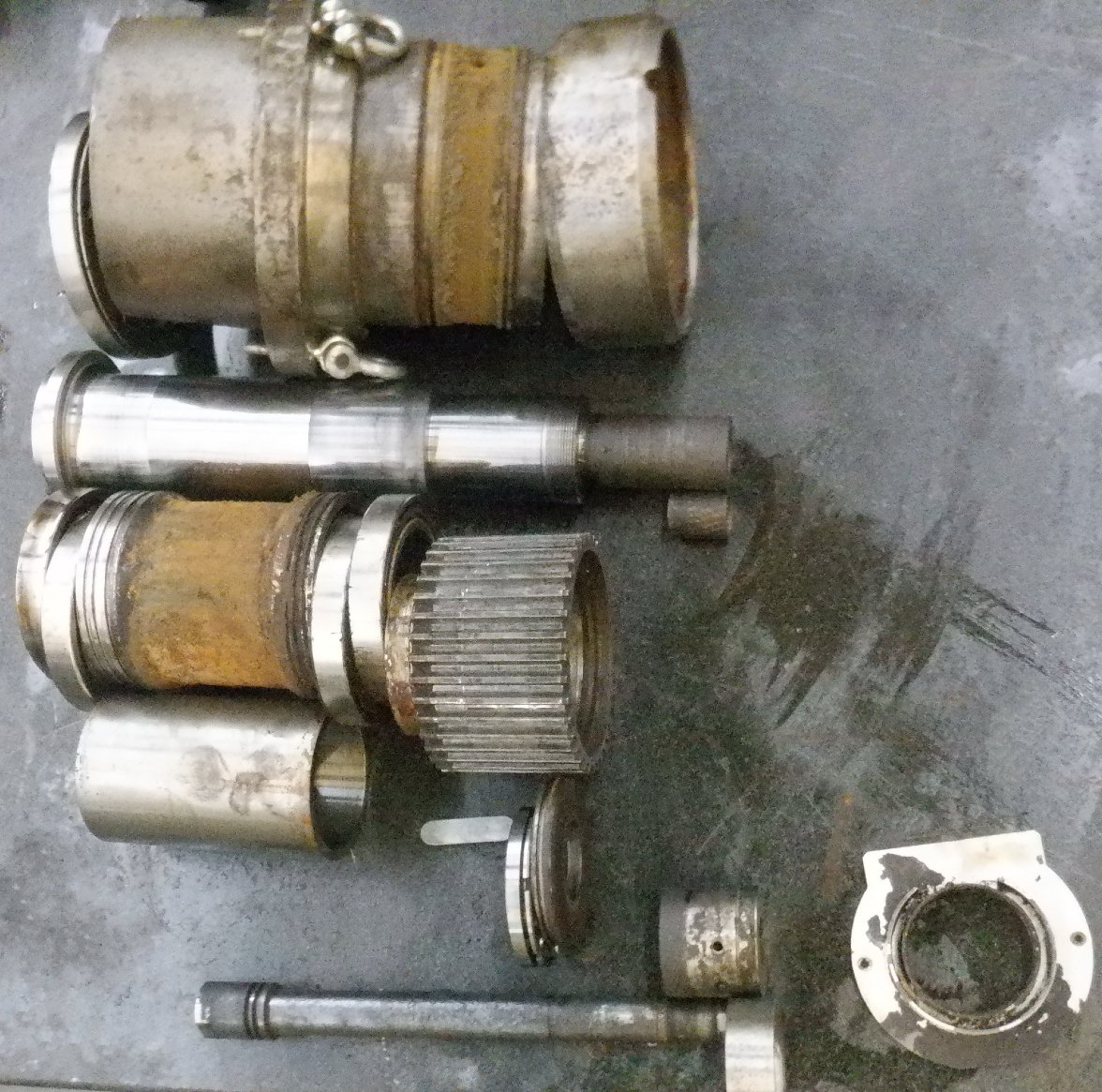

  • Corrosion on the drawbar (Pic 3)

  • Sludge in the coolant loop

Does your spindle need repair? GET A QUOTE TODAY
