Daewoo Mynx 500 Spindle Repair

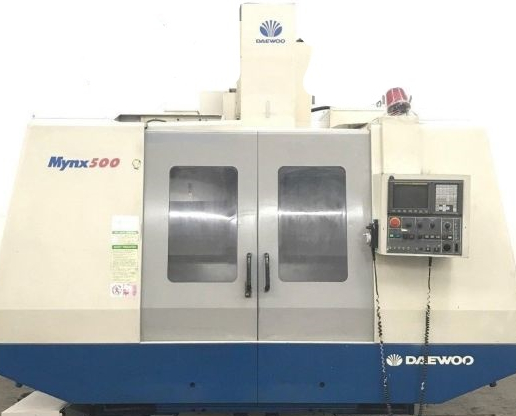

The Daewoo Mynx 500 is a large CNC vertical machining center. It is fitted with a grease lubricated and pulley driven spindle capable of running up to 8,000 rpm.

CHALLENGE

When this Daewoo Mynx 500 arrive at Northland Tool and Electronics, the first thing we noted was that the spindle was covered in coolant residue. Upon inspection, the front bearing pair was heavily contaminated with coolant and swarf. The air purge holes in front cover were also plugged with it. Grease in rear bearing pair was lightly discolored and the drawbar was covered with coolant. The tooling taper was damaged and bell-mouthed with poor tool contact and excessive runout >15µ. Lastly, the gripper fingers (collet) were heavily worn. No other dimensional deviations were noted for this repair.

SOLUTION

The following actions were performed on this Daewoo Mynx 500 spindle:

Clean, inspect overall dimensions
Grind, chrome plate, and finish grind the tooling taper
Replace bearings, bellevilles, grippers, quad seal, o-rings, and assembly screws

RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.

DETAILED CAUSE OF FAILURE

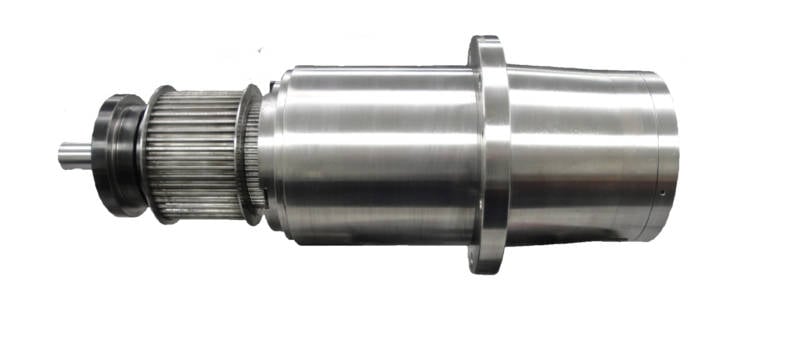

Rotating parts laid out for evaluation

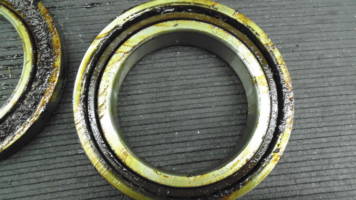

Bearing contamination
