Doosan Puma 2500 LSY Spindle Repair

Doosan Puma 2500 LSY Spindle Rebuild

Our customer sent us this spindle for repair because it had been crashed about a year prior and was making noise. It also developed a “flat spot” that you could feel when spinning the shaft by hand. They had just taken delivery of a new machine and had the time now to fix this spindle before it turned into a catastrophic failure.

Possible cause of failure:

Rear roller shows signs of fretting
Rear nut was loose
#1 front bearing is worn
Shaft pilot has 34 microns runout
No rear roller housing or tooling was supplied

Repair action:

Clean, inspect overall dimensions
Replace bearings
Grind chrome plate and regrind shaft pilot
Adjust preload, balance, assemble and break in
Final quality control inspection

DETAILED CAUSE OF FAILURE

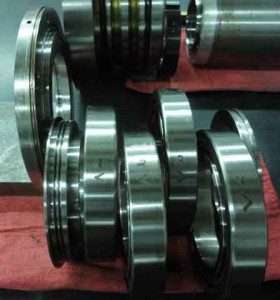

This is the front bearing compliment removed from this spindle during our evaluation process.
