Read MoreDoosan DNM500HS Spindle Repair

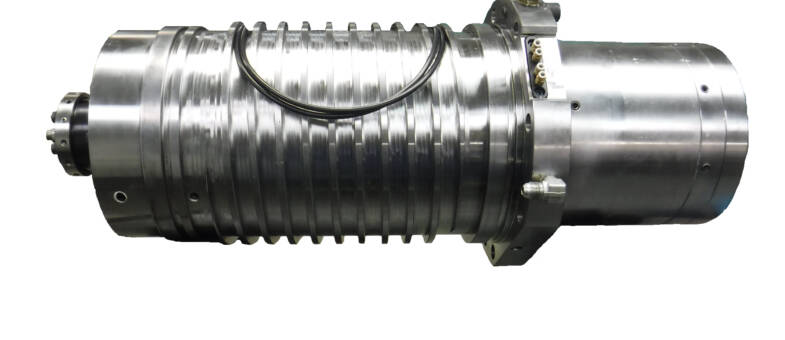

The Doosan DNM500HS is a CNC vertical machining center. It can come fitted with this air/oil lubricated and motor driven spindle that is capable of running up to 15,000 rpm.
CHALLENGE

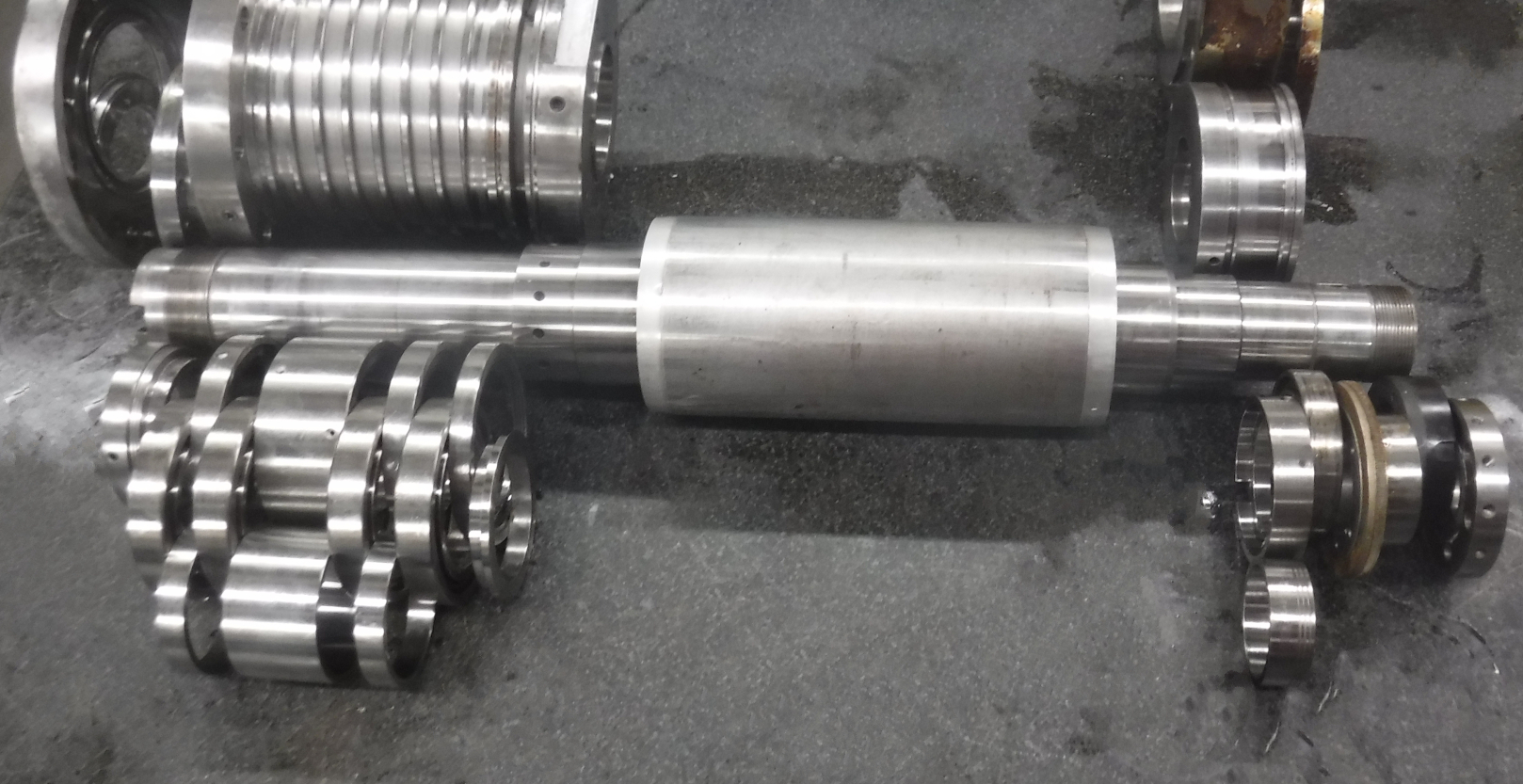

Our customer sent in this Doosan DNM500HS spindle stating that the spindle is noisy. Once the spindle arrived at Northland Tool we completed a full disassembly and evaluation.
This is what we found:
- There was no encoder sent in with the spindle
- Rear roller bearing feels worn when spun by hand

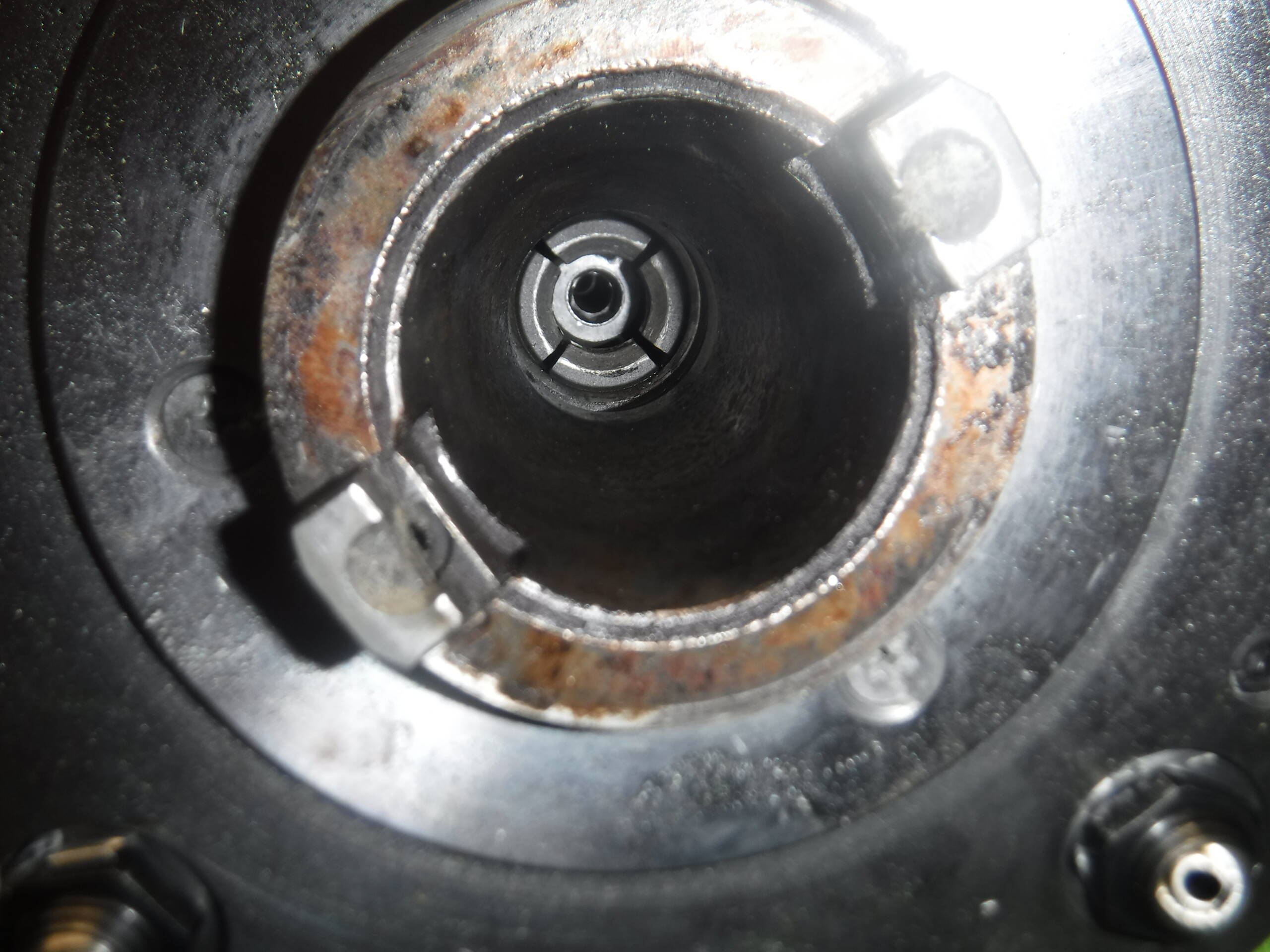

- ID Taper was visibly worn and had high run out as well as poor contact (Pic 1)
- The grippers were worn and needed to be replaced
- The bellevilles took quite a bit of material off of the draw bar
SOLUTION
The following actions were performed on this Doosan DNM500HS spindle:
- Replace bolts, bearings, o-rings, grippers, and bellevilles
- Grind-Plate-Grind (GPG) ID BP40 taper due to high run out and poor contact
- GPG the draw bar
RESULT
After reassembly of all components and adjusting bearing preload this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.
DETAILED CAUSE OF FAILURE
