Mori Seiki NV-5000 Spindle Repair

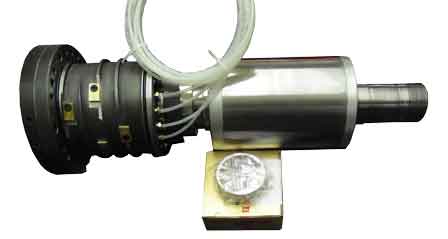

The Mori Seiki NV-5000 is a CNC vertical machining center. It can come equipped with an oil mist lubricated spindle that is capable of running up to 12,000 rpm.

CHALLENGE

The rotor of this Mori Seiki NV-5000 spindle had broken loose from the shaft causing end play or axial movement of the shaft. This damaged the #1 bearing oil injector causing an interruption in lubricant flow and ultimately bearing failure. Lastly, the taper had 3-4 microns of runout and there were high spots on the shaft from a spun spacer. No other imdensional deviations were noted for this repair.

SOLUTION

The following actions were performed on this Mori Seiki NV-5000 spindle:

Clean, inspect overall dimensions
Replace ceramic quad set of bearings and high speed tapered roller
Replace rotor, jet, front cover, guard, and housing from other spindle
Kiss shaft taper
Kiss high spots on shaft
Replace large and small ferrules, drive keys, and coolant plunger assembly

RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.
