Okuma Multus B300 Spindle Repair

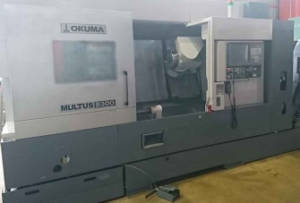

The Okuma Multus B300 is a multi-tasking CNC turning center. It comes equipped with an oil mist lubricated and stator driven spindle capable of running up to 10,000 rpm.

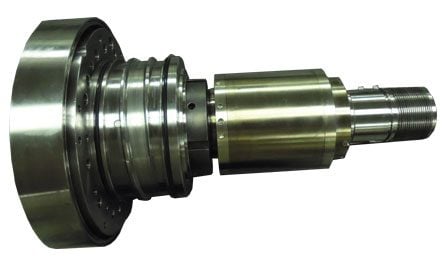

Our customer indicated that they were sending us this Okuma Multus B300 spindle because of a crash. They measured shaft pilot runout at .0005” in the machine. When the spindle arrived at our facility the shaft pilot runout measured after spindle disassembly was only 0-1µ. There was no drawbar assembly supplied incoming and the Capto insert appears to have some tooling wear.
The following actions were performed on this Okuma Multus B300 spindle:
- Clean all parts of the spindle
- Replace all bolts and o-rings
- Replace bearings
After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.
