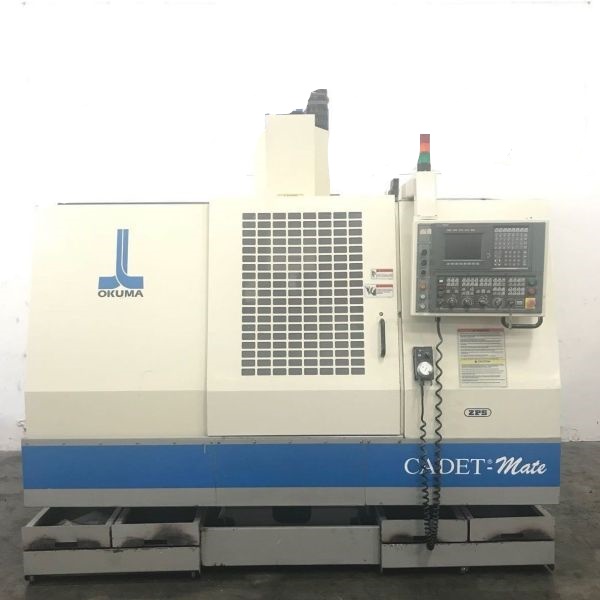

Okuma Cadetmate Spindle Repair

Fretting is the repeated cyclical rubbing between two surfaces over a period of time which will remove material from one or both surfaces in contact. An associated problem occurs when the small particles removed by wear are oxidized in air. This is the rust colored discoloration you see in the picture below. The oxides are usually harder than the underlying metal, so wear accelerates as the harder particles abrade the metal surfaces further.

CHALLENGE

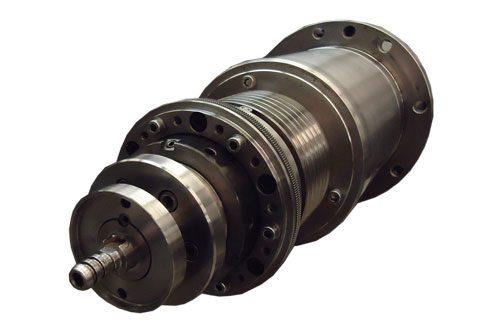

This Okuma Cadetmate spindle arrived at Northland Tool and Electronics for a full breakdown and evaluation. Upon disassembly we found that the front bearings failed from contamination. The outer race of the #1 bearing had severe fretting and 30 microns runout. The housing also had severe fretting. Lastly, the taper was out of ISO and will need to be ground.

SOLUTION

The following actions were performed on this Okuma Cadetmate spindle:

Clean, inspect overall dimensions
Replace bearings, grippers, seals, and bellevilles
Grind, chrome plate, and finish grind the front housing
Kiss grind the 40 taper

RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.

DETAILED CAUSE OF FAILURE

The rust colored areas of the front bearing show where the fretting occurred. The housing was fretted oversized by twice what the ISO standard allows. We ground, chrome plated and finish ground the housing bringing it back within tolerance.
