Bridgeport VMC 760 Spindle Repair

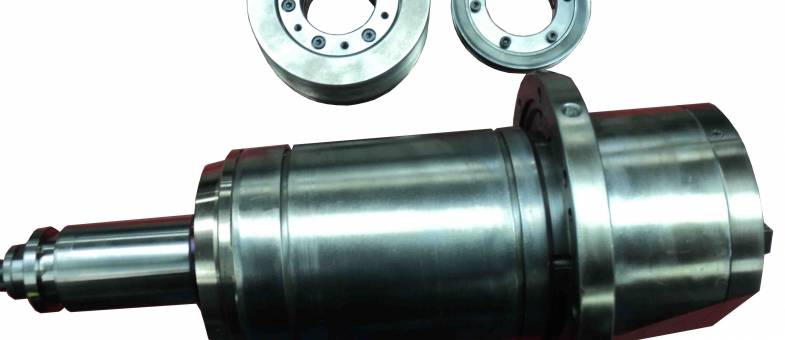

The Bridgeport VMC 760 is a vertical machining center equipped with a spindle capable of running up to 6,000 rpm.

CHALLENGE

When this Bridgeport VMC 760 arrived at our facility, we completed a full breakdown and evaluation. Upon inspection, we noted that the front and rear bearings had failed due to contamination. The rear roller cage was broken and missing some rollers. It was also noted that the hydraulic nut that loads the rear roller had been milled. The drawbar force was low (1,465 lbs) incoming, minimum is 1,800 lbs. Lastly, the critical dimensions were measured and we noted that the taper and rear housing were out of ISO and will need to be addressed.

SOLUTION

The following actions were performed on this Bridgeport VMC 760 spindle:

Clean, inspect overall dimensions
Replace bearings, bellevilles, o-rings, gripper balls
Manufacture a new hydraulic nut. Part cannot be purchase because part is obsolete
Grind, chrome plate, and finish grind the rear housing
Kiss grind taper

RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.

Does your spindle need repair? GET A QUOTE TODAY
