Hardinge Quest 8/51 Spindle Repair

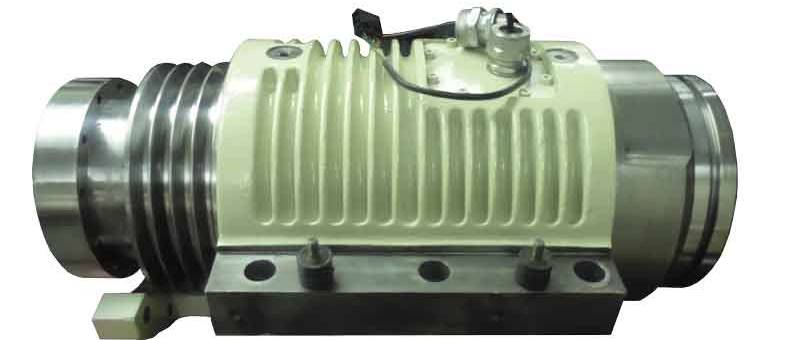

The Hardinge Quest 8/51 is a high production CNC turning center. It comes equipped with a grease lubricated and belt driven spindle capable of running up to 6,000 rpm.

CHALLENGE

This Hardinge Quest 8/51 spindle arrived at Northland Tool and Electronics covered in sticky coolant residue mixed with turnings. Coolant & swarf had completely degraded the grease in the front tri-set of angular contact bearings and the rear roller bearing. At some point the rear bearing failed completely as evidenced by the broken cage. Our inspection showed damage to the vibration damping mounts, front slinger cover and pulley retention nut. In addition, the pulley was fused to the shaft, but we were able to save the pulley by heating it while chilling the shaft to separate the two components without doing further damage. While we found excessive wear to both the ID & OD tapers, our comprehensive dimensional evaluation revealed no significant deviations on the shaft journals or in the housing bores.

SOLUTION

The following actions were performed on this Hardinge Quest 8/51 spindle:

Clean all parts of the spindle
Replace all bolts and o-rings
Replace front cover gasket and vibration damping mounts
Replace bearings
Repair damage to the front slinger cover and pulley retention nut
Kiss grind the shaft ID and OD tapers and face

RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.

DETAILED CAUSE OF FAILURE

Damaged cage of the bearing that failed
Damaged front face of the shaft

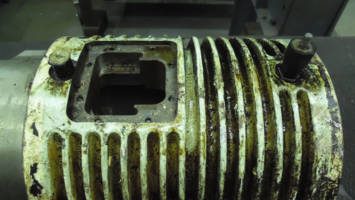

Coolant residue on the spindle housing
Contamination found in the front cover

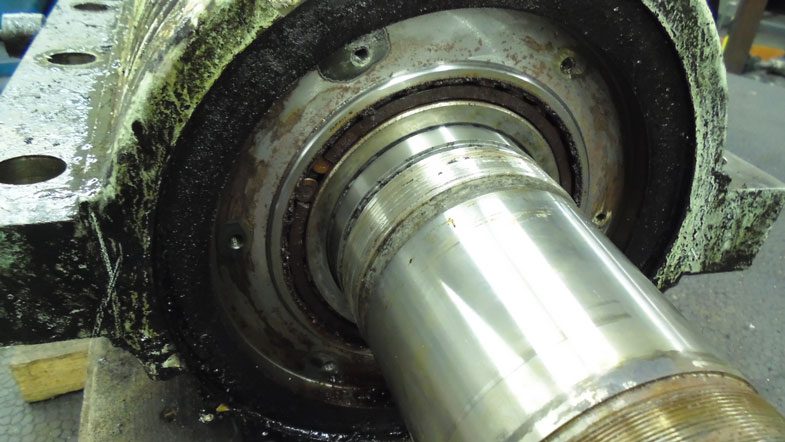

The front shaft assembly ready for evaluation for scope of work

‹ ›
