Mori Seiki Dura Turn Spindle Repair

Mori Seiki Dura Turn Spindle Repair



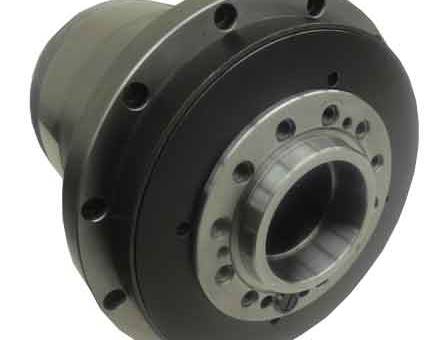

CHALLENGE

Our customer informed us that their Mori Seiki Dura Turn spindle was generating excessive heat during operation and that the part quality deteriorated to the point they wanted to get it repaired.  When the spindle arrived at Northland Tool and Electronics the shaft felt rough when turned by hand.  Our evaluation showed that over time coolant had found its way into the front bearings and washed the grease out of them. This removes the lubrication from the bearings causing rolling element to bearing raceway contact and eventually bearing failure.  We also inspected the labyrinth, shaft, and housings for damage or wear.  There were no dimensional deviations found.



SOLUTION

The following actions were performed on this Mori Seiki Dura Turn spindle:

  • Clean all parts of the spindle
  • Replace all bolts and o-rings
  • Replace bearings



RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.

DETAILED CAUSE OF FAILURE

  • Mori Seiki Dura Turn Spindle Repair

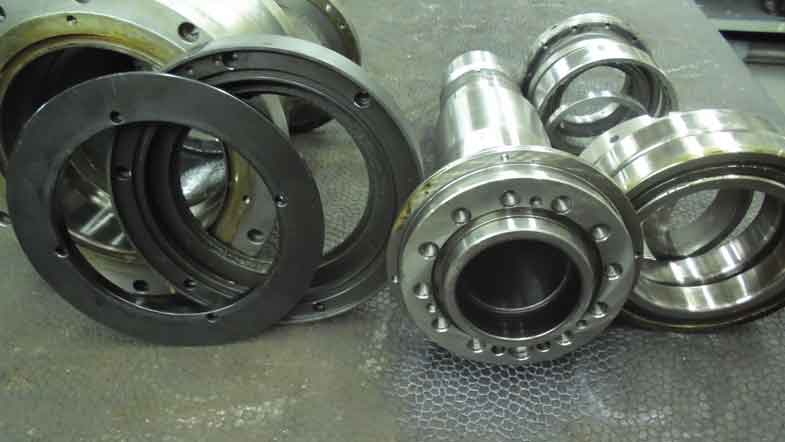

    Spindle has been disassembled and is waiting for evaluation for scope of work and cause of failure.

  • Mori Seiki Dura Turn Spindle Repair

    This shows some of the coolant that was inside the spindle puddled up on the front flange of the shaft.

  • Mori Seiki Dura Turn Spindle Repair

    This is the interior side of the front cover. It shows the residue of coolant and grease mixture that caused the spindle to fail.

  • Mori Seiki Dura Turn Spindle Repair

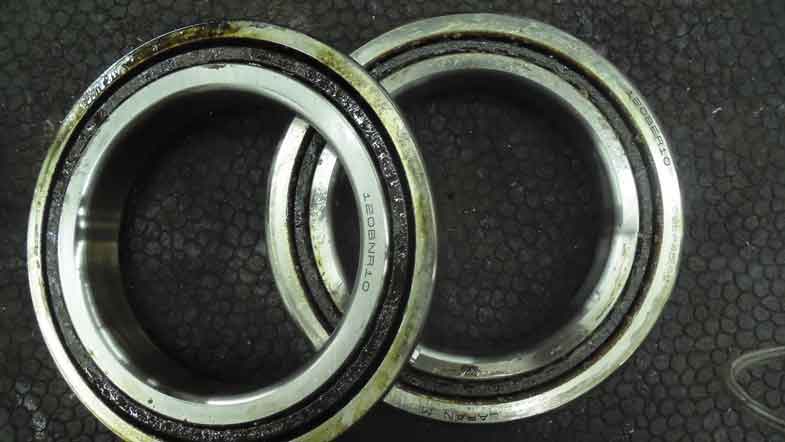

    These front bearings have had the grease washed out of them by the coolant that migrated through the front cover.
