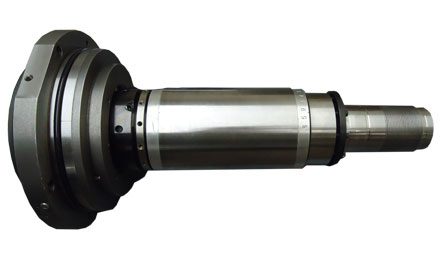

Mori Seiki NLX2500 Spindle Repair
The Mori Seiki NLX2500 is a CNC turning center. It comes equipped with a grease lubricated and stator driven spindle capable of running up to 6,000 rpm.
This repair had been started by our customer, but after they got into it they decided the best route would be to send it to Northland Tool for repair. Upon disassembly, we found the front and rear bearings were worn and the outer front bearing spacer needed to be replaced.
The following actions were performed on this Mori Seiki NLX2500 spindle:
- Clean, inspect overall dimensions
- Replace bearings
- Manufacture a new outer front bearing spacer
After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.
