GMN TS70CS120 Spindle Repair

The GMN TS70CS120 is a tool and cutter grinding spindle. It comes grease lubricated, belt driven, and capable of running up to 10,000 rpm.

CHALLENGE

Our customer sent in this GMN TS70CS120 spindle saying it was noisy and that it had failed. When the spindle arrived at Northland Tool and Electronics we first noted that the spindle felt rough and was very noisy, as the customer stated, incoming. Upon disassembly and evaluation, we noted that the front bearings were heavily contaminated and had failed. From the front bearings failing, there was catastophic damage to the front bearing journal. Lastly, we measured high run out on both the front and rear OD tapers.

SOLUTION

The following actions were performed on this GMN TS70CS120 spindle:

Clean, inspect overall dimensions
Replace bearings, o-rings, and assembly screws
Grind, chrome plate, and finish grind (GPG) the front bearing journal
GPG both the front and rear OD tapers

RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.

DETAILED CAUSE OF FAILURE

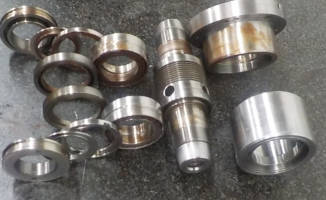

Rotating parts laid out for evaluation

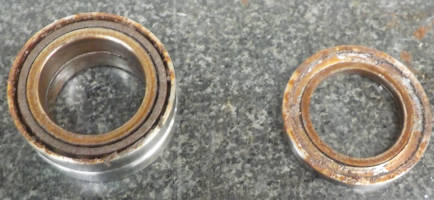

Front bearing contamination
