GMN TX80CX142 Spindle Repair

Affectionately known at Northland Tool as a dumbbell spindle , this spindle is not for a dumbbell to put together. The tooling interface is a critical portion of the repair and can only be done correctly with the proper equipment and gauging. We incorporate our grinding department into GMN spindle repairs to insure proper face and taper contact. We are one of the few spindle rebuild companies with this ability.

CHALLENGE

When this GMN TX80CX142 spindle arrived at our facility we completely disassembled and evaluated the spindle. Upon inspection, we noted that the front nut was loose causing runout, the front and rear housings were egged, and the shaft tapers were out of ISO.

SOLUTION

The following actions were performed on this GMN TX80CX142 spindle:

Clean, inspect overall dimensions
Replace bearings, o-rings, and assembly screws
Grind, chrome plate, and finish grind the front and rear housings
Kiss grind shaft tapers

RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.

DETAILED CAUSE OF FAILURE

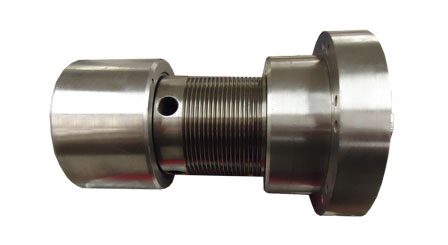

Rotating parts laid out for evaluation

Does your spindle need repair? GET A QUOTE TODAY
