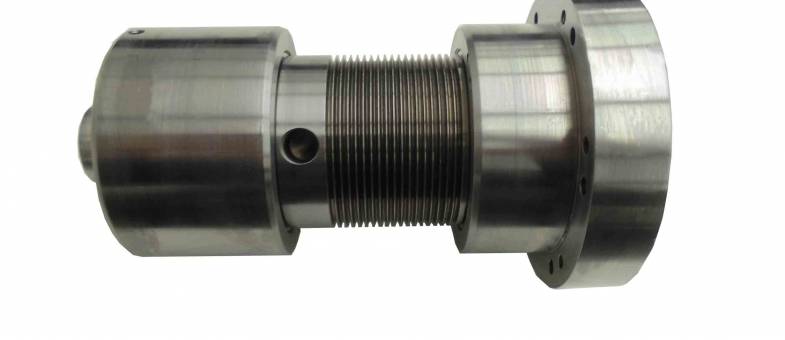

GMN TS80X142 Spindle Repair

Northland Tool & Electronics repairs several of this type of spindle every month for our customers. We incorporate our Kellenburger universal grinders into the repair process to ensure the tooling contact on the face and taper is to specification. Our process gives you the best run out and lengthens the life of your spindle compared to some rebuilders who grind in assembly under less than perfect conditions. Northland Tool has invested in the proper tooling and equipment to make sure your repair exceeds your expectations.

CHALLENGE

This GMN TS80X142 was sent to us to be fully rebuilt. The first thing we did was complete a full breakdown and evaluation. Upon close inspection, we noted that the front shaft nut was loose and caused bearings to lose preload. We then measured the critical dimensions (bearing journals, housing, taper, etc.) and found a few issues. First, the front housing was +6/+10 egged (ISO is +/- 6.5). Second, the rear housing was +8/+13 egged (ISO is +/-6.5). Lastly, the tapers had significant run out. No other dimensional deviations were noted for this repair.

SOLUTION

The following actions were performed on this GMN TS80X142 spindle:

Clean, inspect overall dimensions
Replace bearings, o-rings, and assembly screws
Grind, chrome plate, and finish grind the housing
Kiss grind both tapers

RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.
