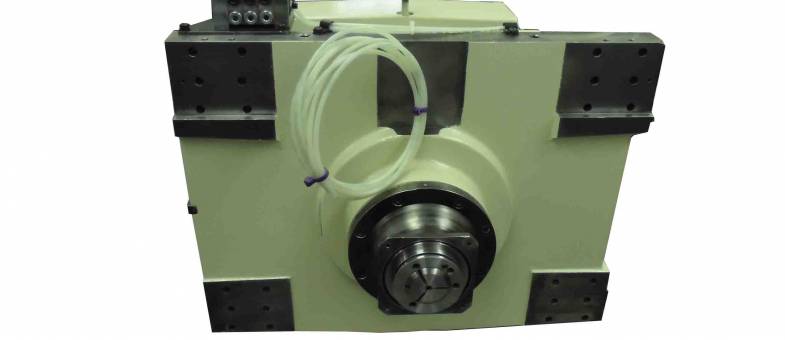

Hardinge Elite 6/42 Spindle Repair

The Hardinge Elite 6/42 is a high production CNC turning center. It comes equipped with a grease lubricated and stator driven spindle capable of running up to 5,000 rpm.

CHALLENGE

When this Hardinge Elite 6/42 spindle arrived at Northland Tool and Electronics we performed a complete breakdown and evaluation. We found quite a few issues that will need to be addressed. First, the #1 and#2 front bearings failed due to coolant washing out the lubricating grease. Second, the #3 and # 4 bearings are failing and the od races are very fretted(most likely caused when the fronts failed). Third, the #’s 5,6, and 7 bearings are slightly contaminated. Fourth, the guide bushing adapter had a large chip broken out of it at some existing balance holes. Fifth, the rear wiper seal for the draw tube support shaft was broken into several pieces. Lastly, the secondary collet 3/16″ hole is out of round, the guide bushing collet face and ID were worn. The spindle was sent in missing the rear actuator assembly.

SOLUTION

The following actions were performed on this Hardinge Elite 6/42 spindle:

Clean, inspect overall dimensions
Replace bearings, o-rings
Replace fittings, oil lines, guide bushing adapter, and the collets

RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.
