Hardinge VMC800II Spindle Repair

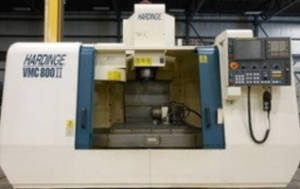

The Hardinge VMC800II is a high production CNC vertical machining center. It comes equipped with a grease lubricated and belt driven spindle capable of running up to 8,000 rpm.

CHALLENGE

When this Hardinge VMC800II spindle arrived at Northland Tool and Electronics we completed a full breakdown and evaluation. The first thing we found was that the #4 bearing of the front quad set had failed and the cage came apart. Debris from the cage from the #4 bearing also got into the #3 bearing. Second, we noted that the grease in the rear rollers,#1,#2,#3 looked reasonably clean. Third, the draw bar shaft was pitted and the bellevilles looked worn. Fourth, it appears that their actuator may be pushing down the drawbar too far and over loading the rear bearing’s, causing spindles to fail prematurely. Lastly, the rear roller housing was +3/+5 (iso is +2/-13). No other dimensional deviations were noted.

SOLUTION

The following actions were performed on this Hardinge VMC800II spindle:

Clean, inspect overall dimensions
Replace bearing’s, belleville’s, o-ring’s
Replace drawbar assembly
Grind, chrome plate, and finish grind the rear roller housing
Customer should check their actuator for over adjustment to prevent over loading the rear pair of the quad set of bearings

RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.

DETAILED CAUSE OF FAILURE

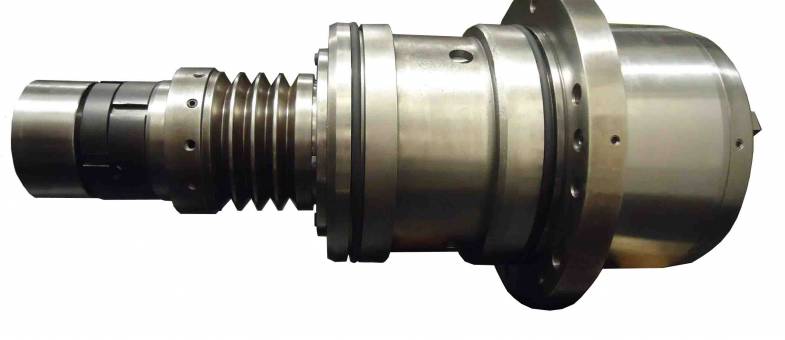

Spindle ready for evaluation
